Setting up Port Forwarding

• Goto http://10.0.0.138/ (enter login details if prompted, click OK)
• Click "Advanced" to expand the advanced menu

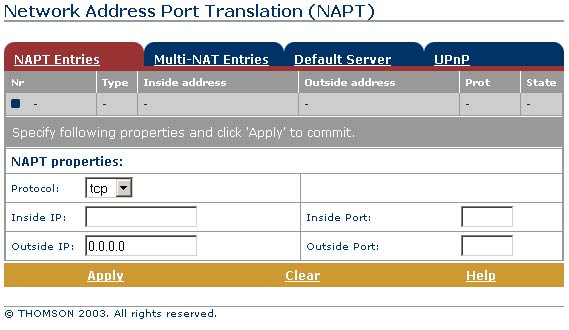

• Click "NAPT" and select "New"
• Complete the necessary fields





  • Protocol - either "TCP" or "UDP"
  • Inside IP - local IP to forward the port to
  • Inside Port - local port (typically the same as Outside Port)
  • Outside IP - leave as "0.0.0.0"
  • Outside Port - port of service to be forwarded

• Click "Apply"
• Click "Save All"
